++DROP RENDER — FIG.01
21U SERVER ENCLOSUREFIG.01
Folded and welded 1.5mm CRS enclosure with cable management, EMC gasketing and a full flat-pattern pack issued to BS 8888.
MECHANICALREV.CDATA INFRASTRUCTURESCALE 1:5
INDEX / WORK — DRAWING REGISTER
Work, presented as we deliver it
Every project here left the studio checked, toleranced and issued to the client's own standard. Filter by discipline, or read the register straight through.
850+ PROJECTS EXECUTED · 20+ YEARS IN SERVICE · UK · USA · AUS · NZ
16 SHEETS ON FILE
++

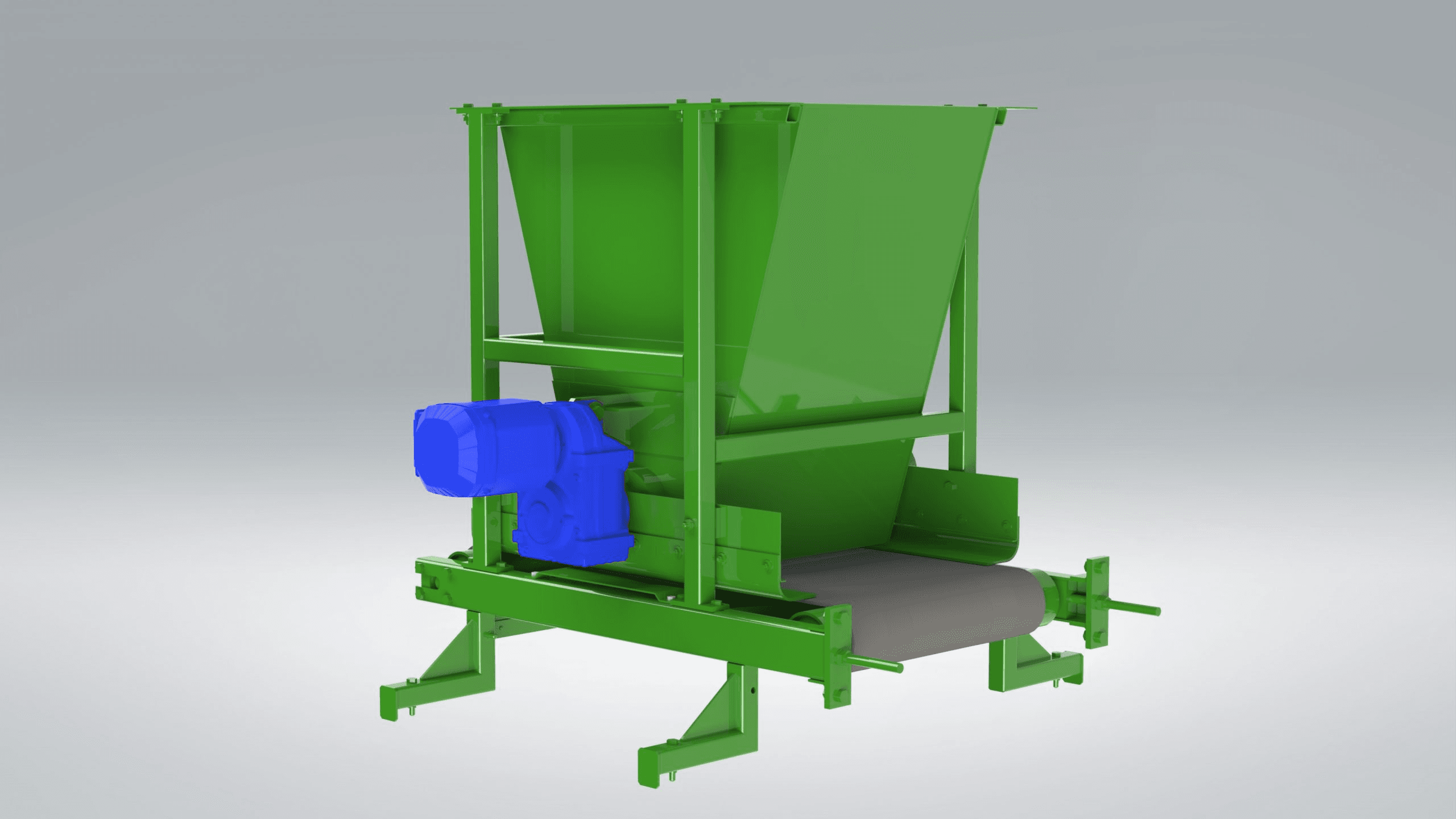

DOSATOR UNITFIG.16
Powder dosing frame modelled from site survey data — hopper, drive assembly and guarding detailed for fabrication and inspection.
MECHANICALREV.BPROCESS INDUSTRYSCALE 1:10
++DROP RENDER — FIG.06

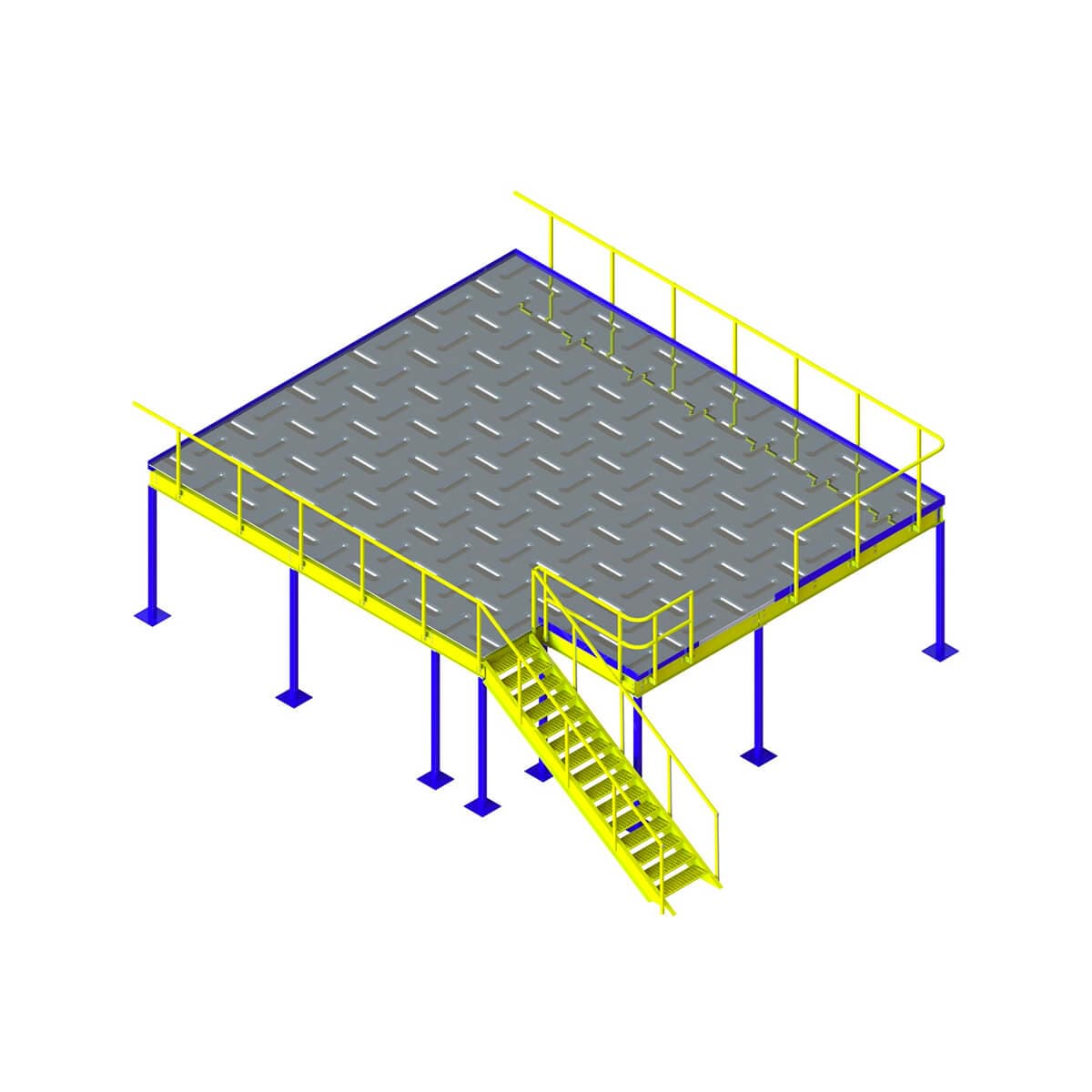

MEZZANINE STEEL DETAILINGFIG.06
Structural steel mezzanine with connection design, weld symbols and a complete GA and part drawing register.
MECHANICALREV.CCONSTRUCTIONSCALE 1:20
++DROP RENDER — FIG.08
ASME VIII RECEIVER VESSELFIG.08
Pressure vessel detailed to ASME Section VIII with nozzle schedules, reinforcement calculations and inspection documentation.
MECHANICALREV.EOIL & GASSCALE 1:25
++DROP RENDER — FIG.09
ELECTRICAL PANEL BOXFIG.09
IP54 panel enclosure with DIN rail layout, gland plate and door seal detail — flat patterns and bend sequences included.
MECHANICALREV.BMACHINE MANUFACTURINGSCALE 1:5
++DROP RENDER — FIG.04
HANDHELD DIAGNOSTICS HOUSINGFIG.04
Two-part ABS housing taken from concept sketch to DFM-reviewed tooling pack, with an IP54 gasket and snap-fit study.
NPDREV.AMEDICAL DEVICESSCALE 1:1
++DROP RENDER — FIG.21
DOSING PUMP CONCEPTFIG.21
Three competing concepts modelled and scored against cost, serviceability and cycle time before detail design began.
NPDREV.APROCESS INDUSTRYSCALE 1:2
++DROP RENDER — FIG.24
LEGACY VALVE REBUILDFIG.24
Obsolete cast valve scanned, rebuilt as fully parametric CAD and reissued with as-built drawings under revision control.
NPDREV.BHEAVY ENGINEERINGSCALE 1:1
++DROP RENDER — FIG.02
WALNUT RETAIL COUNTERFIG.02
Veneered counter carcass with solid-surface top, integrated services and a complete cut list and hardware schedule.
JOINERYREV.BRETAILSCALE 1:10
++DROP RENDER — FIG.03
OAK RECEPTION DESK SUITEFIG.03
Curved reception suite drawn for a three-site rollout — nested panels, edge-banding schedule and site scribe details.
JOINERYREV.DFIT-OUT & INTERIORSSCALE 1:10
++DROP RENDER — FIG.26
PENTHOUSE WARDROBE RUNFIG.26
Twelve-metre wardrobe run detailed around out-of-square walls, with Blum hardware scheduled and machine-ready panels.
JOINERYREV.CRESIDENTIALSCALE 1:20
++DROP RENDER — FIG.29
CURVED STAIR BALUSTRADEFIG.29
Laminated handrail and balustrade set out from a point cloud, with templates issued for the bench and the site fix.
JOINERYREV.BARCHITECTURAL JOINERYSCALE 1:10
++DROP RENDER — FIG.07
5-AXIS IMPELLER TOOLPATHSFIG.07
Simultaneous 5-axis roughing and finishing on AL 7075-T6, simulated with stock and fixture models before posting.
CNCREV.AAEROSPACESCALE 1:2
++DROP RENDER — FIG.05
LASER-CUT PANEL NEST + DOCSFIG.05
Nested DXF set with bend sequences, K-factor corrected flat patterns and a per-sheet material utilisation report.
CNCREV.BMETAL FABRICATIONSCALE 1:2
++DROP RENDER — FIG.30
GEARBOX HOUSING OPSFIG.30
Four-operation machining sequence with work offsets, tool list and inspection documents any operator can run from.
CNCREV.CMACHINE MANUFACTURINGSCALE 1:2
++DROP RENDER — FIG.31

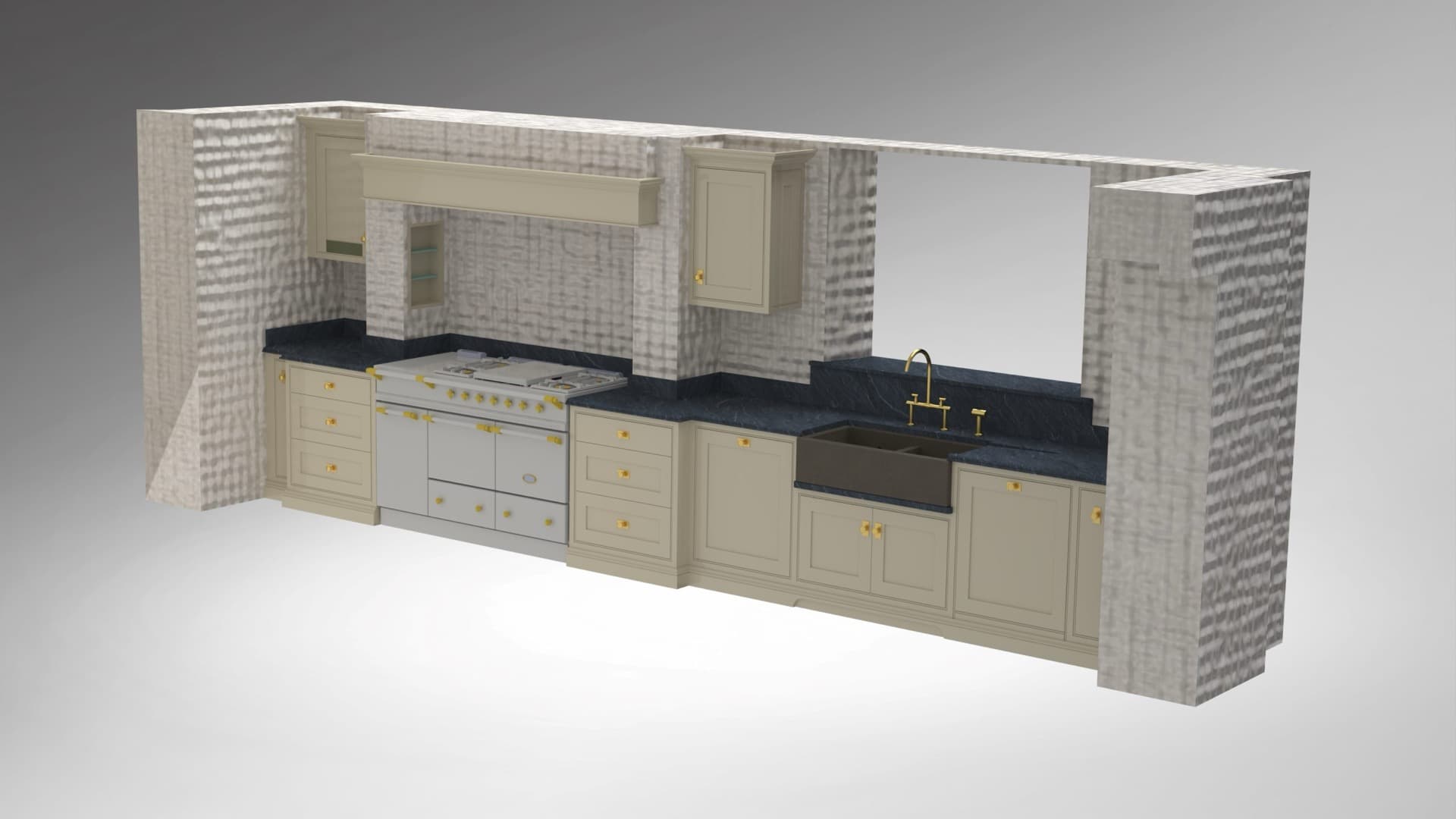

KITCHEN CARCASS ROUTINGFIG.31
Nested and labelled routing programmes for a batch kitchen run, cutting sheet waste by a fifth against the previous set.
CNCREV.AFURNITURE MAKERSSCALE 1:10
SHEETS SHOWN ARE REPRESENTATIVE. CLIENT-IDENTIFIABLE DRAWINGS ARE HELD UNDER NDA AND RELEASED ONLY WITH WRITTEN PERMISSION — ASK FOR A RELEVANT SAMPLE PACK →
Want to see work like yours?
Ask for a sample pack.
NDA-FIRST · SCOPED WITHIN 24H · NAMED ENGINEER
