Can you work from architect's design intent drawings?

Yes. We translate intent into buildable joinery and flag anything that will not survive the workshop or the site before it costs you money.

How do you handle site tolerances?

Scribes, packers and shadow gaps are drawn from your survey dimensions. Adjustment is built into the fixing detail rather than left to the fitter on the day.

Which hardware do you specify?

Whatever your workshop buys. Blum, Hafele and Hettich libraries are already set up, and every item is scheduled by part number and fixing position.

Do you produce files our CNC can run?

Yes, nested DXFs with 32mm system drilling and edge banding allowances, output to suit your machine, tooling and labelling convention.

How quickly can a fit-out package be turned around?

A single-zone package typically runs five to ten working days. Larger fit-outs are issued zone by zone so manufacture can start on the first release.

INDEX / SVC.03 JOINERY / SVC.03.A · COMMERCIAL MILLWORK

Fit-out millwork, drawn for the bench.

Shop drawings for reception desks, counters, wall panelling and architectural joinery, carcass construction, scribes and fixing details resolved on the sheet before a single panel is nested.

Get in touch What we detail →

SWOODSOLIDWORKSAUTOCADMICROVELLUMCABINET VISION

ISSUED TOISOASMEDINBS

ON YOUR TEMPLATES
AND TITLE BLOCKS

FIG.76 · RECEPTION DESK · REV.3

CLICK TO EXPLODE / ASSEMBLE

RECEPTION DESKREV.3FIG.76WALNUT VENEER · 19MM MDFSCALE 1:10SHT 1/12

SVC.03.A · MILLWORK INDEX, EIGHT LINES

Every panel accounted for,
every fixing drawn

FROM ARCHITECT'S INTENT TO NESTED PANELS · ONE PACKAGE, NO PHONE CALLS

.01General Arrangements & Setting-OutPlans, elevations and setting-out grids referenced to the building, so every run lands where the architect drew it.

.02Carcass Construction & Panel Detailing19mm MDF and birch ply carcasses detailed with joint method, grooves and rebates called up panel by panel.

.03Sections, Scribes & Shadow Gap DetailsJunction details drawn at 1:5, scribes to plaster, shadow gaps, reveals and negative details resolved before manufacture.

.04Veneer Layout & Grain MatchingSlip-matched and book-matched walnut and oak veneer set out leaf by leaf, with grain direction marked on every face.

.05Hardware & Ironmongery SchedulesBlum, Hafele and Hettich items scheduled by reference, quantity and fixing position, nothing left to the installer's guess.

.06CNC-Ready DXF & Nesting FilesMachine-ready panel files with 32mm system drilling, edge banding allowances and material-optimised nests.

.07Cut Lists & Edge Banding SchedulesFinished sizes, oversizes and banded edges listed per panel, so the beam saw and the bander run from one document.

.08Site Survey Interpretation & As-Built RevisionsSurvey dimensions worked into the package, with revised sheets issued when the building disagrees with the drawing.

PROCESS · FOUR CHECKPOINTS

How a package reaches the bench

STEP.01

Design intent in

Architect's drawings, sketches or a finishes schedule plus your survey, everything reviewed before anyone opens a model.

STEP.02

Fixed quote

Scope, sheet count and programme confirmed in writing inside 24 hours. No hourly meters.

STEP.03

Detailing & review

GAs and sections issued for comment first, so the joinery is agreed before panel-level detailing starts.

STEP.04

Issue for manufacture

Checked drawings, cut lists, hardware schedules and DXFs released together as one revision-controlled pack.

SECTORS ·FIT-OUT & INTERIORSRETAILHOSPITALITYCOMMERCIAL OFFICESHOPFITTINGARCHITECTURAL JOINERYEDUCATION & HEALTHCARE

Packages we've issued

ALL WORK →

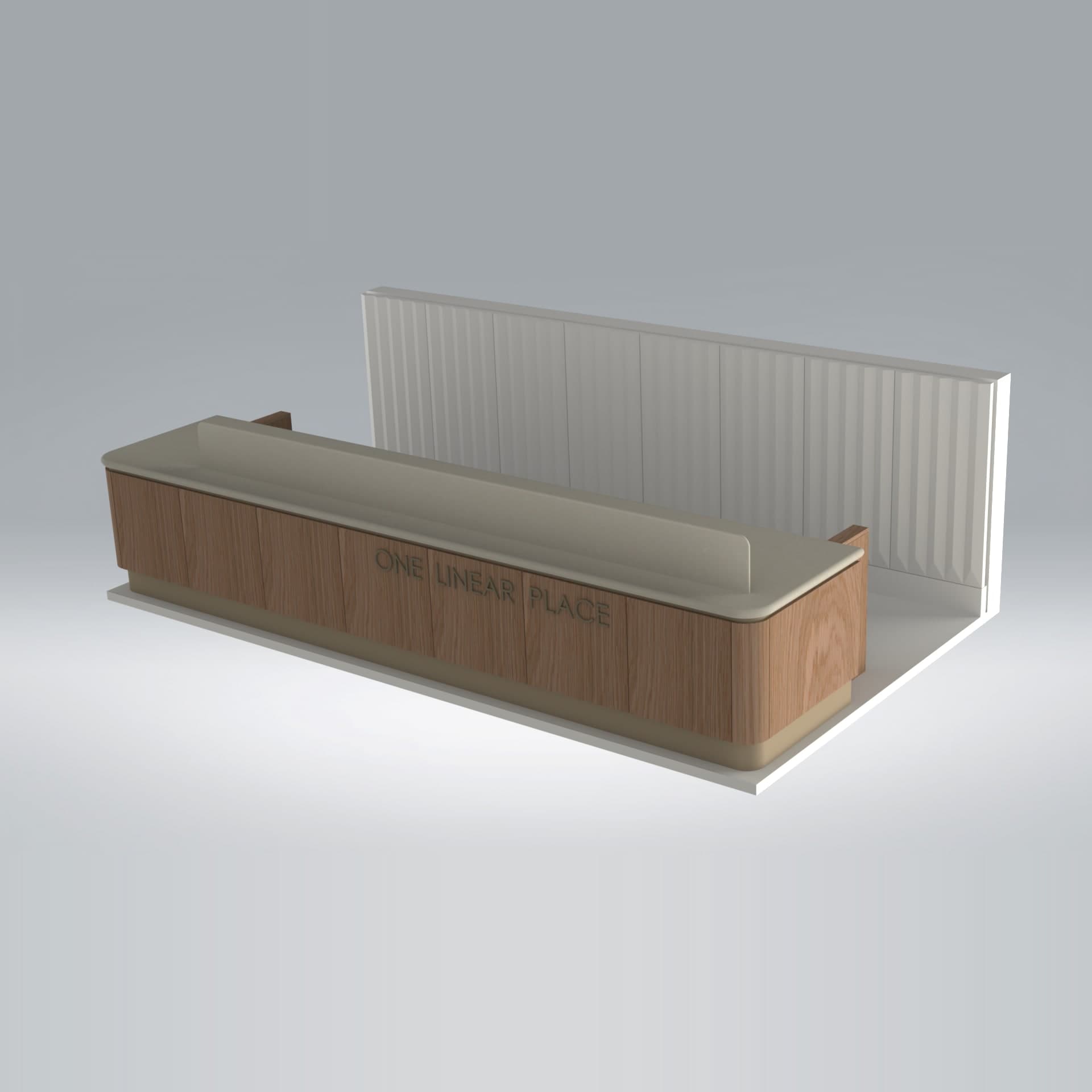

RECEPTION DESKFIG.76

BAR COUNTERFIG.77

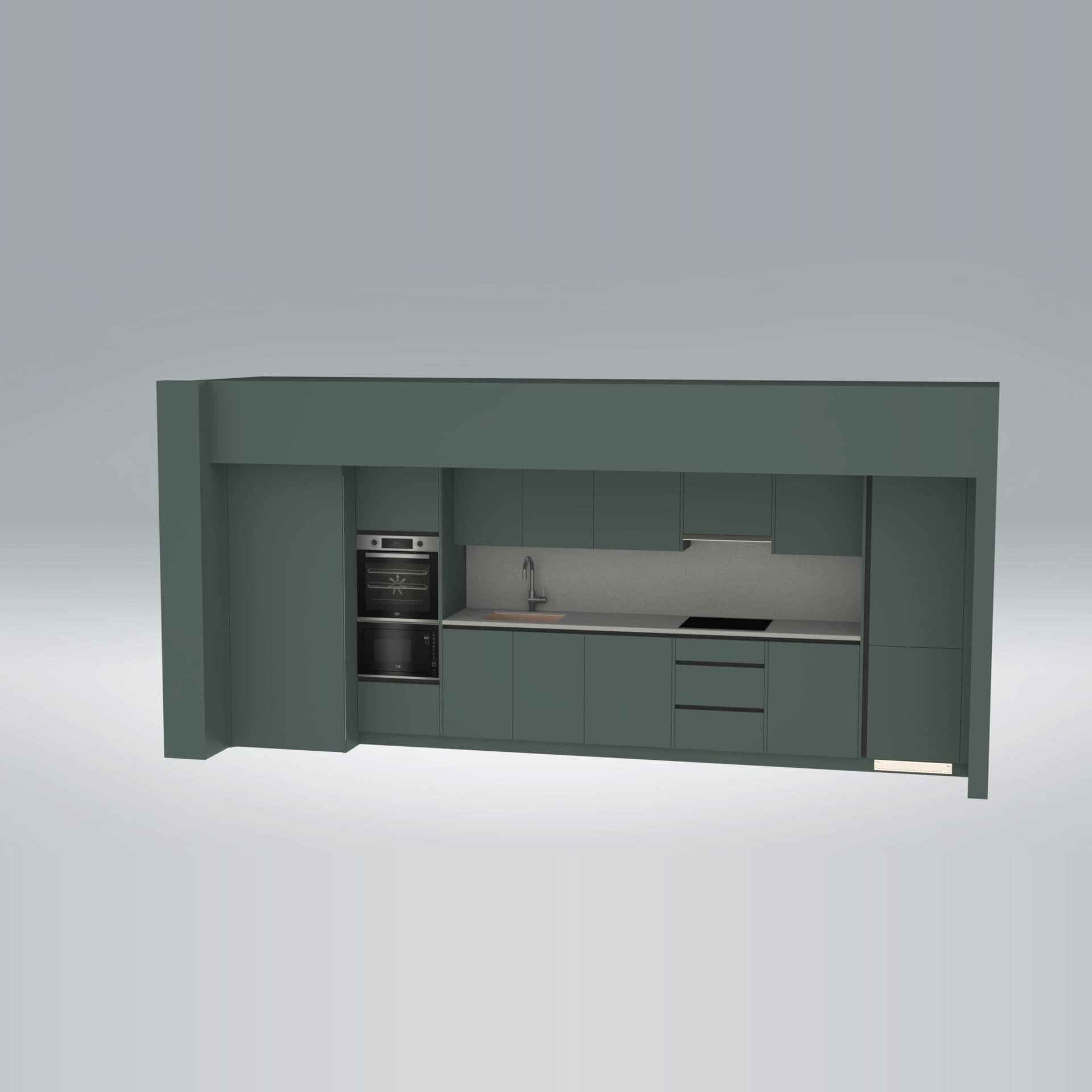

TEA POINTFIG.78

BANQUETTE SEATINGFIG.79

CASH COUNTERFIG.80

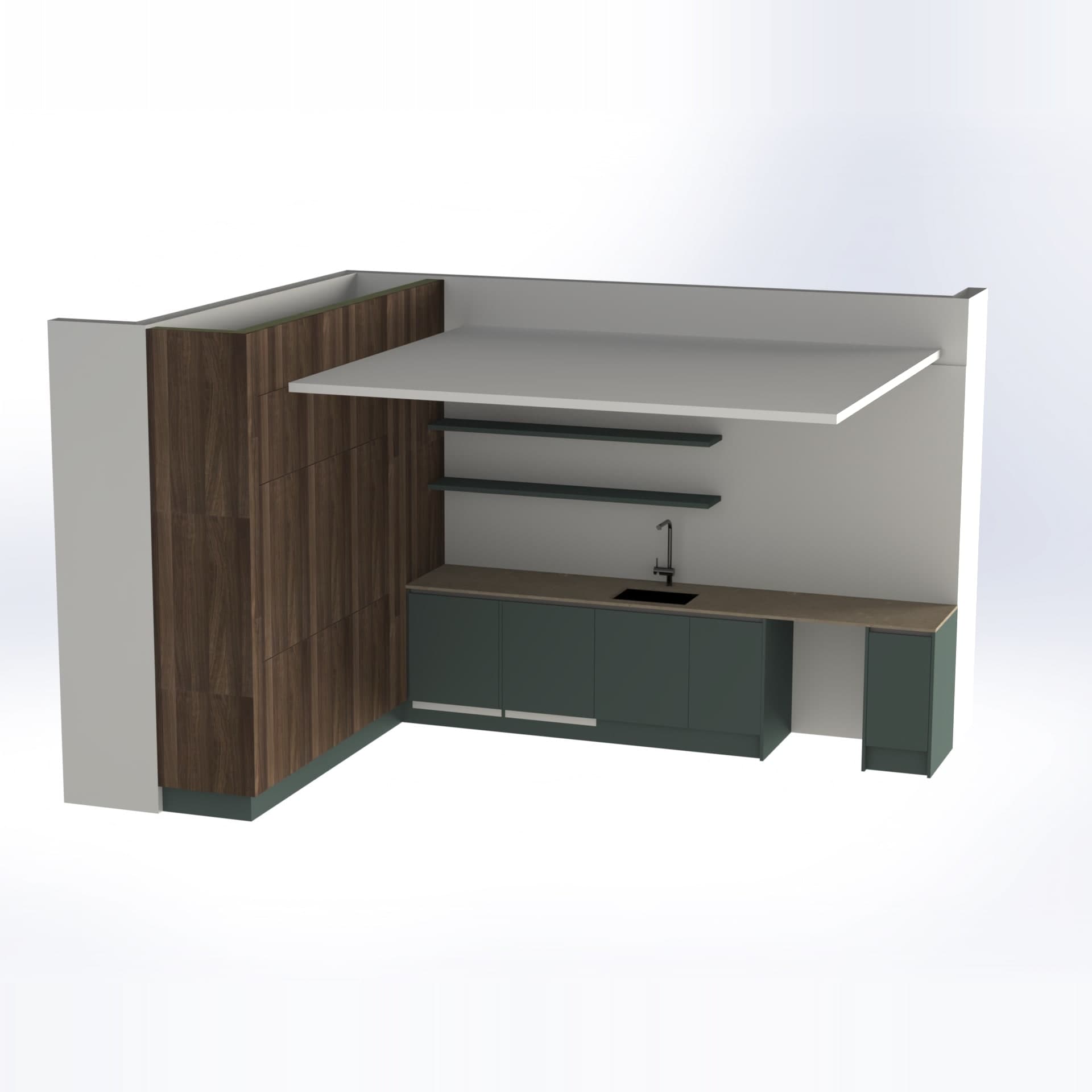

BAR KITCHENFIG.81

PANELLED WALLFIG.149

BAR COUNTER 02FIG.150

KITCHENETTEFIG.151

BENCH SEATINGFIG.152

U-SHAPED BANQUETTEFIG.153

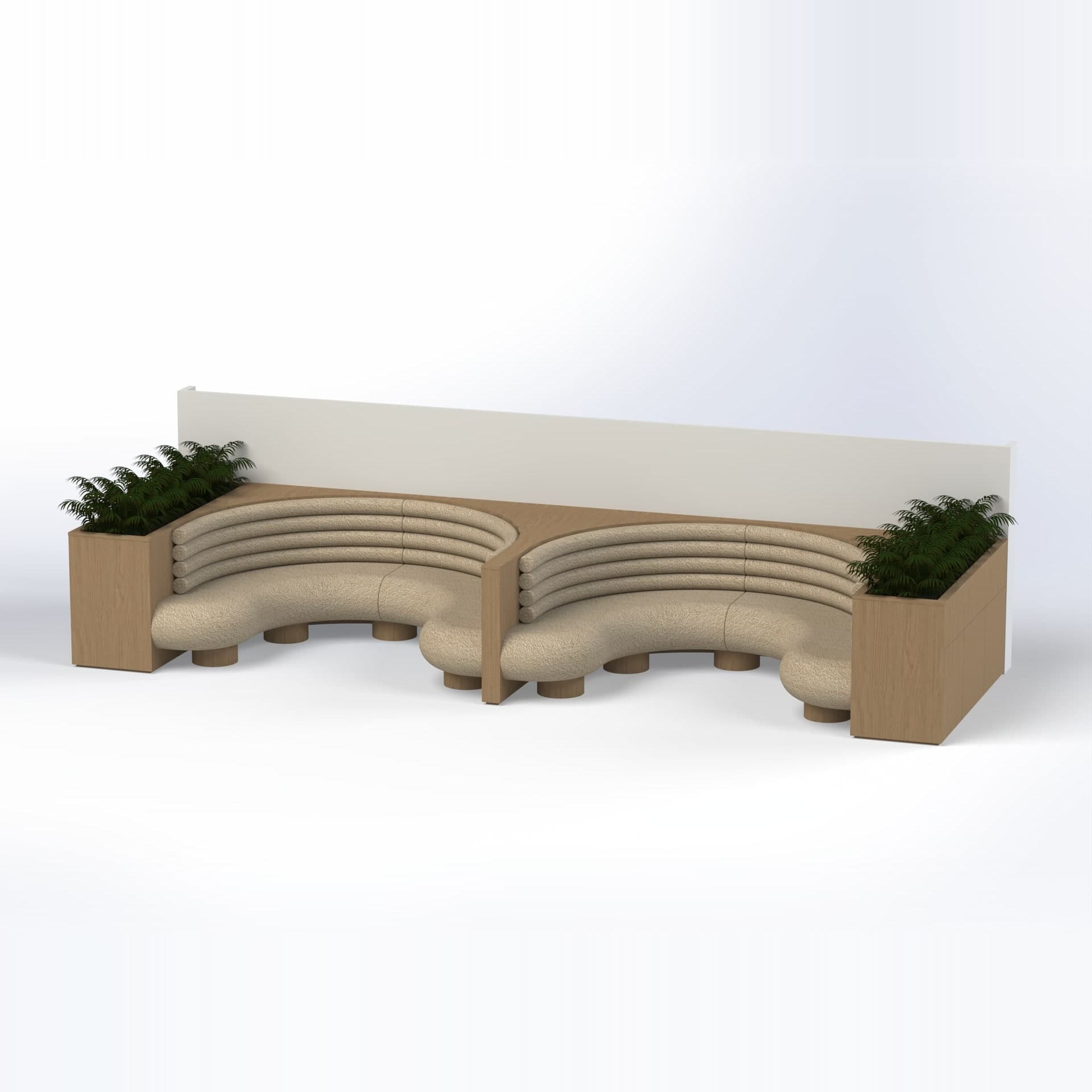

PLANTER BANQUETTEFIG.158

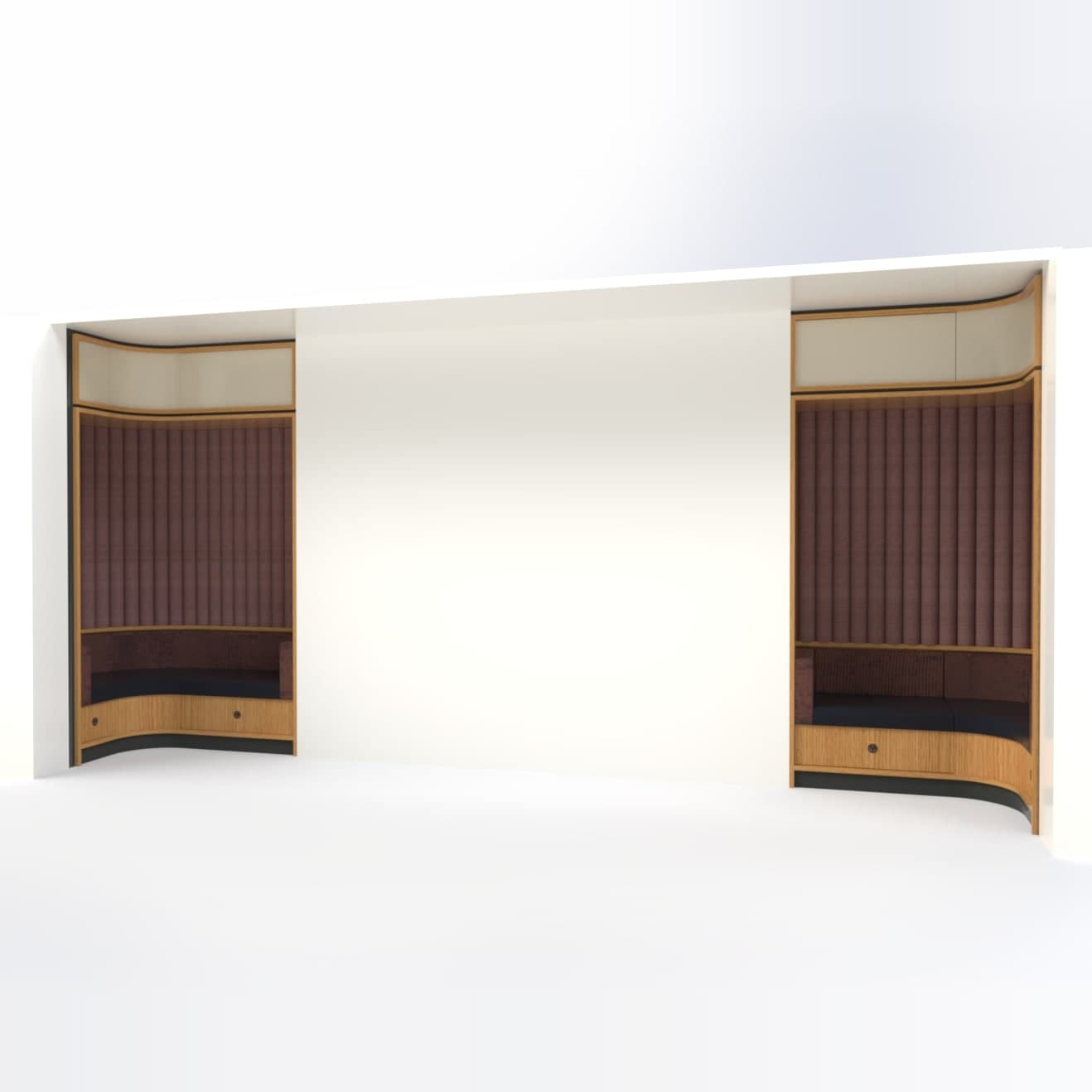

PRIVACY BOOTHSFIG.159

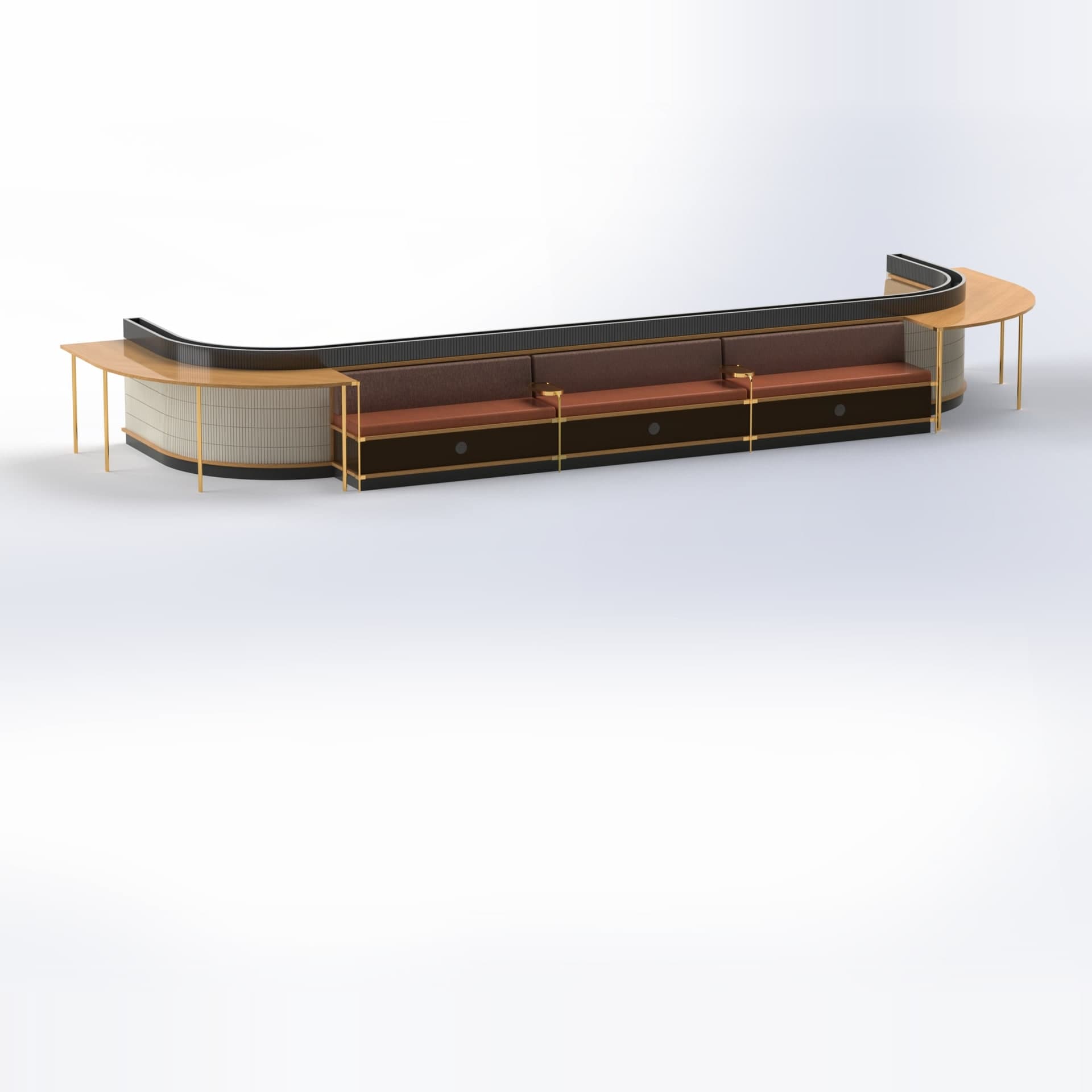

CURVED BAR RUNFIG.160

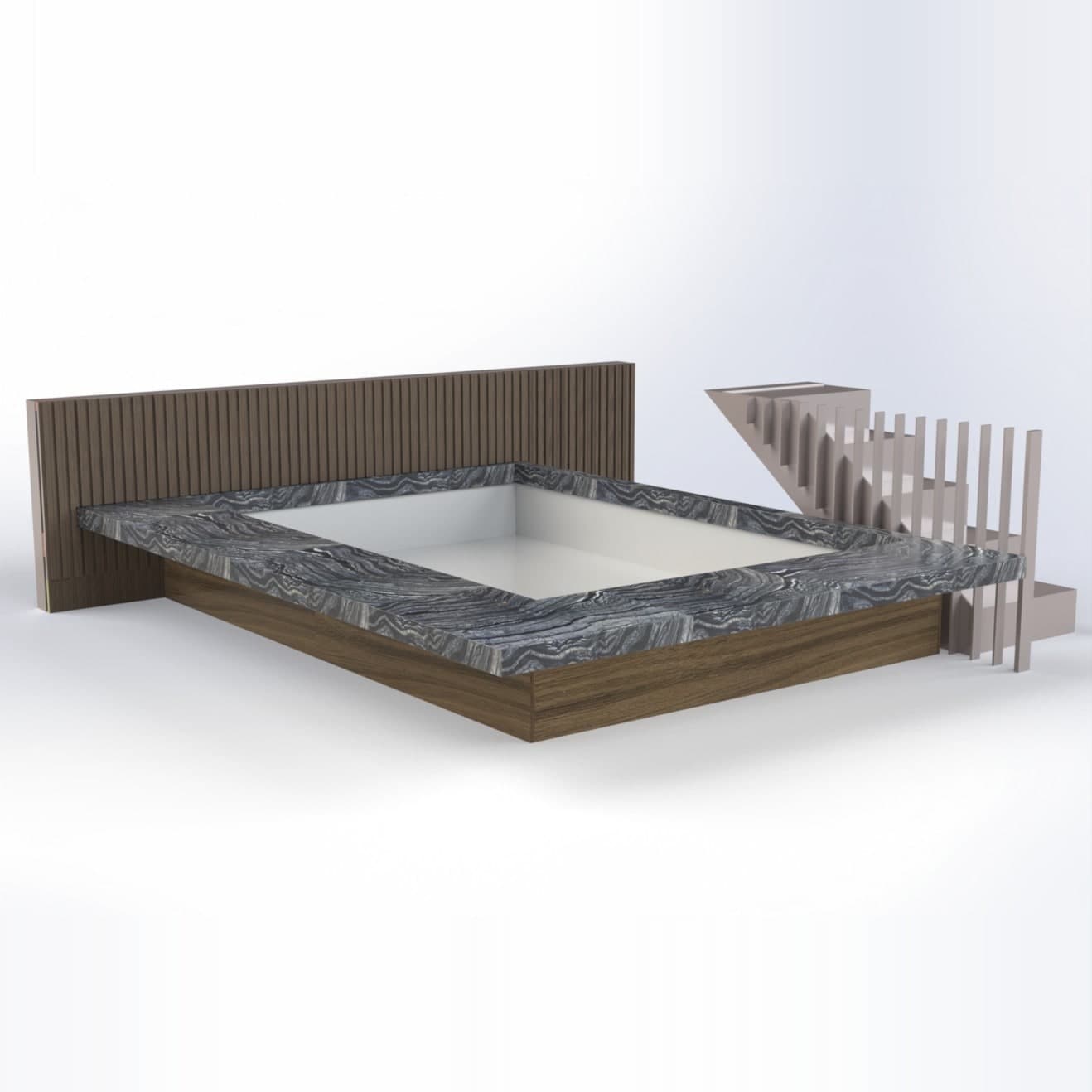

BED SURROUNDFIG.161

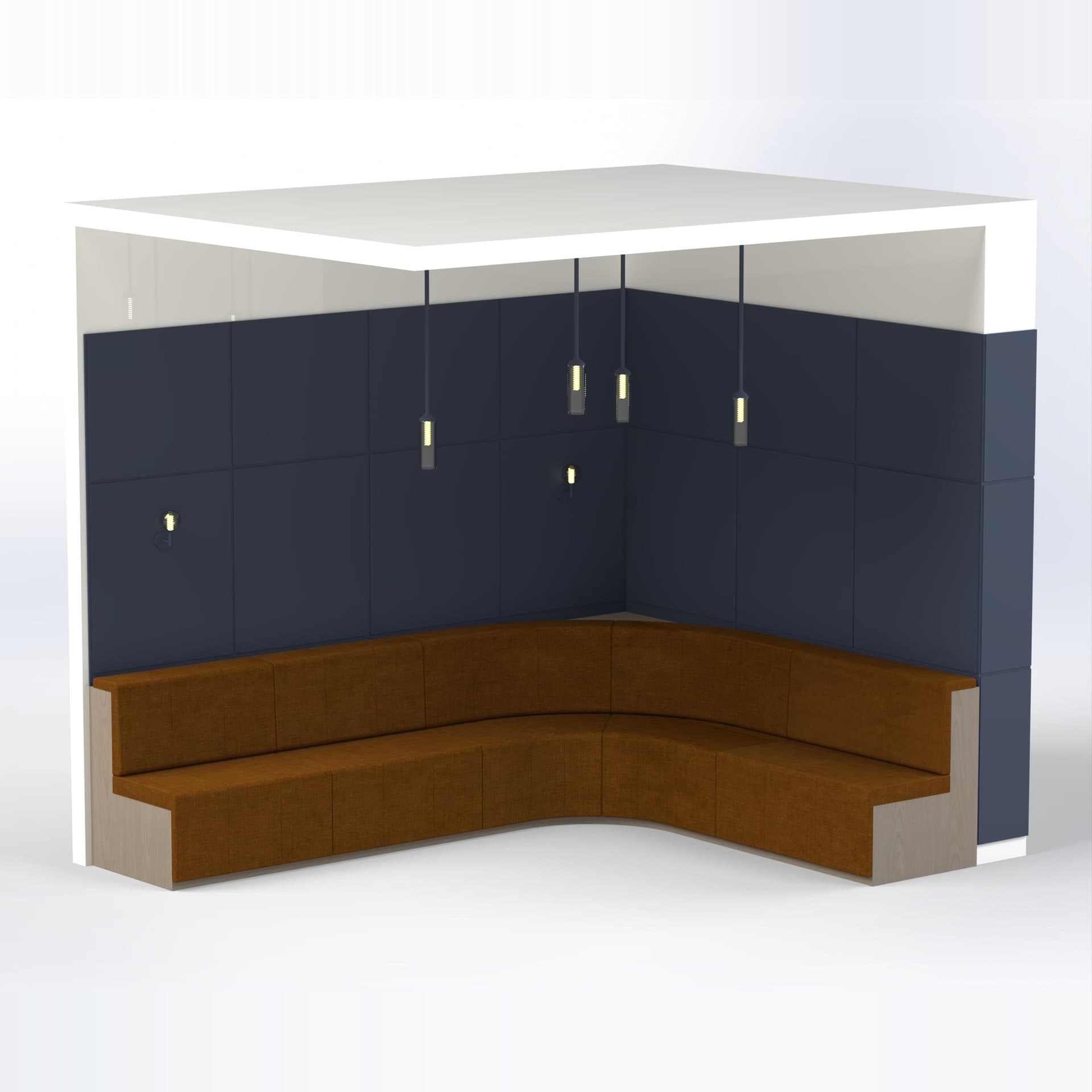

CORNER BANQUETTEFIG.162

OUR CLIENTS · ON THE RECORD

Signed off, worldwide

REG.014 · SIGN-OFF

“I can attest to ZetaCore's exceptional sheet metal design capabilities. Their designs are detailed, accurate, and perfectly suited to our needs, which has significantly improved our project outcomes.”

MICHAEL ANDERSONCUSTOMER IN UK

ORIGINUNITED KINGDOMSERVICECOMMERCIAL MILLWORKSTATUSAPPROVED ✓

SHT 1 / 3

RFI LOG · MOST FREQUENT QUESTIONS

Before you ask

GAs, elevations, sections at 1:5, carcass drawings, cut lists, hardware schedules and CNC-ready DXFs, all issued together under one revision.

Have a fit-out drawing set?
Send it with the survey.

NDA-FIRST · SCOPED WITHIN 24H · NAMED ENGINEER

Send the drawings Book a call →
